How to use the AEG Hob²Hood® function
Resolution

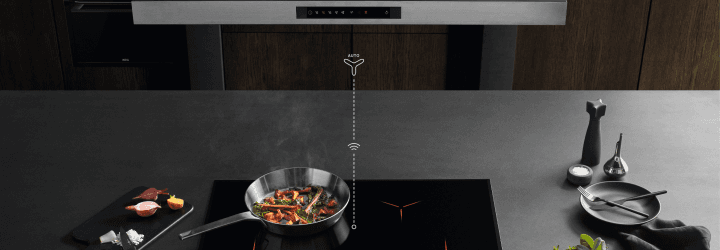

Using Hob²Hood®
Available modes
The default mode is H5, but there are also other modes to choose from. For example, if you prefer more powerful extraction when boiling and frying, select mode H6. If you prefer low fan speed, select mode H4. Or, if you want the light to switch on automatically but prefer to set the fan speed yourself, select mode H2.
See the settings for each available mode in the table below.
Automatic light | Boiling¹⁾ | Frying²⁾ | |
Mode H0 | Off | Off | Off |
Mode H1 | On | Off | Off |
Mode H2³⁾ | On | Fan speed 1 | Fan speed 1 |
Mode H3 | On | Off | Fan speed 1 |
Mode H4 | On | Fan speed 1 | Fan speed 1 |
Mode H4 | On | Fan speed 1 | Fan speed 1 |
Mode H5 | On | Fan speed 1 | Fan speed 2 |
Mode H6 | On | Fan speed 2 | Fan speed 3 |
Changing the mode
Change the default mode by following these steps:
Important
- Protect the hood panel from direct sunlight
- Do not direct halogen light onto the hood panel
- Do not cover the hob control panel
- Do not interrupt the signal between the hob and the hood (e.g. with the hand, a cookware handle or a tall pot)
For more information about your specific cooker hood model,
