How to remove or replace the robotic vacuum cleaner's batteries?

Issue

• How to remove or replace the robotic vacuum cleaner's batteries?

Applies to

• Pure i9 series robotic vacuum cleaner
• RX9 series robotic vacuum cleaner

Resolution

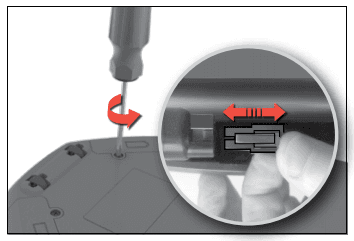

1. The battery compartments are located on the bottom side of the robot:

• Use a screwdriver (PH2) to unscrew the battery compartment lids.
• Replace the battery packs and refit the battery compartment lids.
• Use only original supplier batteries.
• Batteries must be removed and disposed of safely, before disposing of the machine.

Caution! Make sure to change the two battery packs at the same time.
