Washing Machine Installation Guide

Issue

• Washing machine basic installation guide
• How to do the basics!

Applies to

• Washing machines
• Washer dryers

Resolution

We highly recommend using our 'Electrolux Installer app' for manuals, guides, videos and specifications of all our models. Search "Electrolux Installer" in Android Play Store or Apple App Store to download.

WASHING MACHINE QUICK INSTALLATION GUIDE

The Key Steps

There are really only five main steps involved (for UK machines).

1. Remove the transit bolts.
2. Attach the fill hose.
3. Attach the drain hose, and ensure there are no kinks.
4. Check the machine does not rock – level it if required.
5. Plug in and switch it on.

Quick step-by-step guide

1: Remove the transit bolts and replace them with the blanks provided.

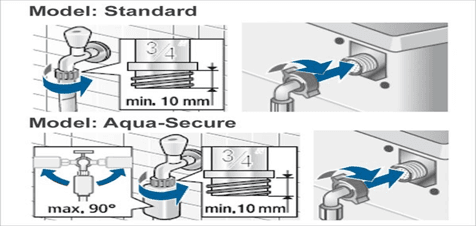

2: Connect the cold water pipe to the cold water tap,

3: Connect the waste water pipe to either a standpipe or to a connection under the sink. Ensure there are no kinks in either pipe.

4: Plug the appliance into a standard socket and check the appliance is level using a spirit level. If not, raise or lower the feet as necessary.

5: Switch the appliance on, run a rinsing programme and check for any leaks. If none are found, push the appliance into its final position.
